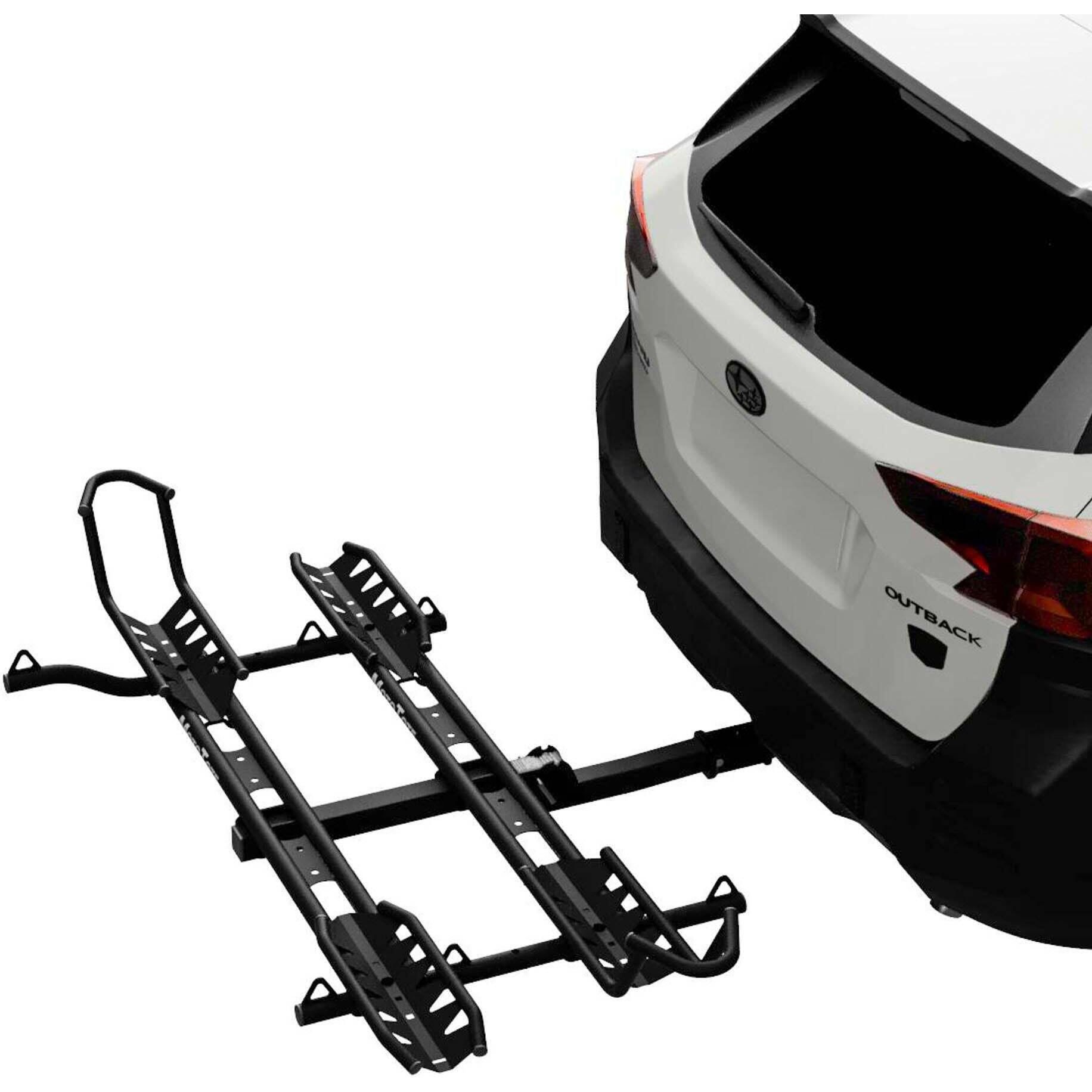

MotoTote Mini Dual Bike Rack for E-Bikes - MTMD-C

The leading weight capacity bike rack for two heavy electric bikes. Weighing 63 lbs and hauling two e bikes up to a combined 350 lbs, it offers impressive structural efficiency with innovative adjustable parts and it stores out of the way with a fold up design. Plus it's easy to load with integrated tire tracks and a low loading height. Release your concerns and haul in maximum confidence with a rack that leverages 25 years of motorized bike hauling.

Specifications:

• Wheelbase: From 40"-52" (102-132 cm)
• First Track Distance from Vehicle: Adjustable at 16", 18" or 20"
• Distance Between Tracks: 15" (38 cm)
• Total Length: 62"-72" (157.5-183 cm)
• Front Tie Down Width: 25" (63.5 cm)
• Front Wheel Chock Width: Up to 5" (127 mm)
• Weight Capacity: 350 lbs (91 kg)
• Material: Powder Coated Steel
• Finish: Textured Black Powder Coating
• Hardware: Black Zinc Coated

Includes:

• One (1) SecureStow Hinge - New, upgraded part with simplified assembly and enhanced lateral strength, this wobble-free fold mechanism reduces the footprint when bikes are off the carrier
• Two (2) MTM Platforms - Innovative dual-beam main supports act as tire track, haul up to 200 lbs, support track length adjustability up to 52" and the attachment of innovative components. Connects to 2" receivers
• Two (2) StableStop Mini Chocks - One-piece tire stops wedge front tires up to 5" wide into chock, maximize support, and hold e bikes upright while securing tie-downs
• Two (2) MaxHold Mini Rear Tire Holders - Laser cut tire holders grip and wedge rear tire sizes up to 5" wide into racks
• Two (2) BroadPull Mini Dual Arms - Elongated version of MotoTote's patented front tie-down arms provide main support for electric bike stabilization. Rear tie down arms prevent rear tire from bouncing out of track
• One (1) ZeroWobble Hitch-Mount

Installation Instructions (2.27 MB)
