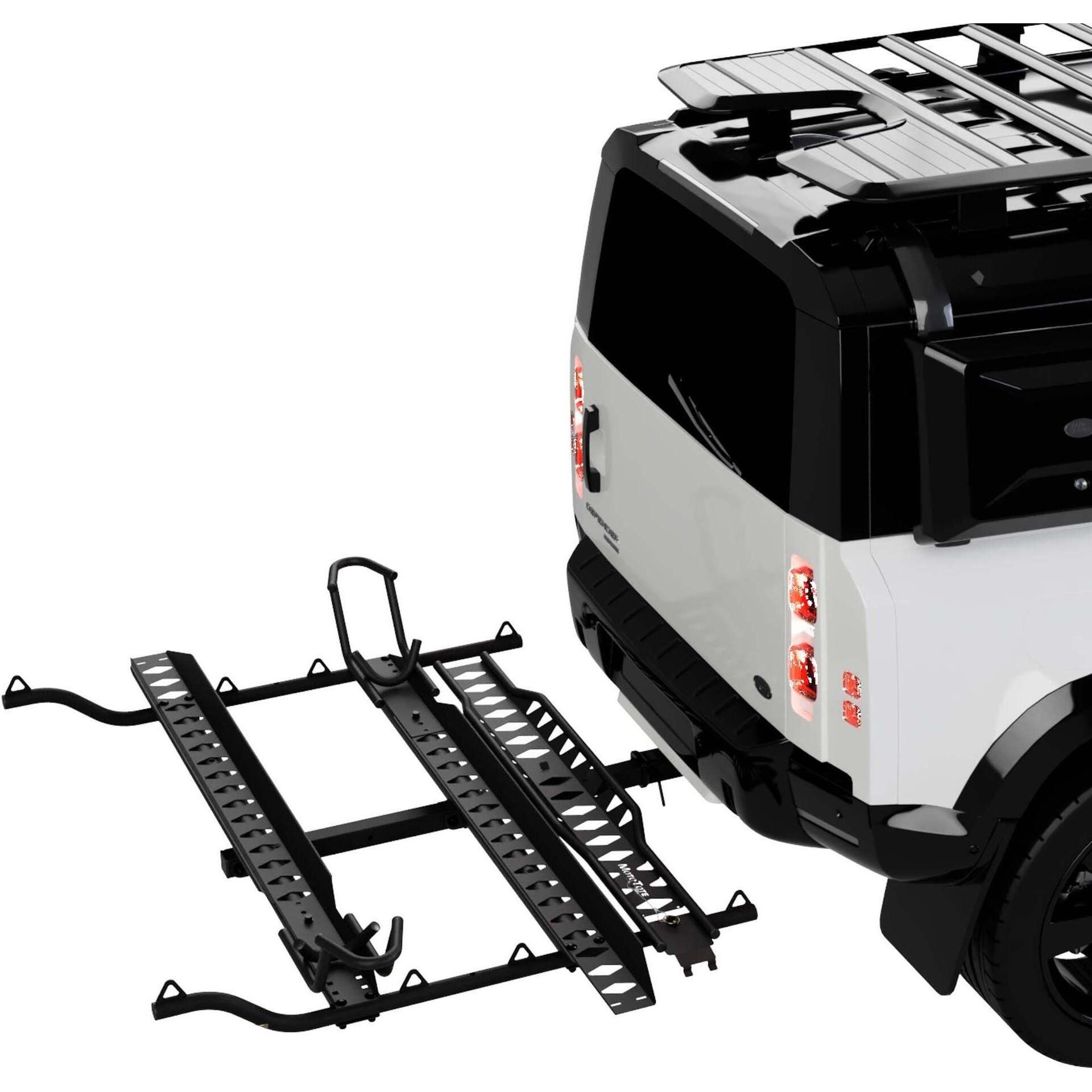

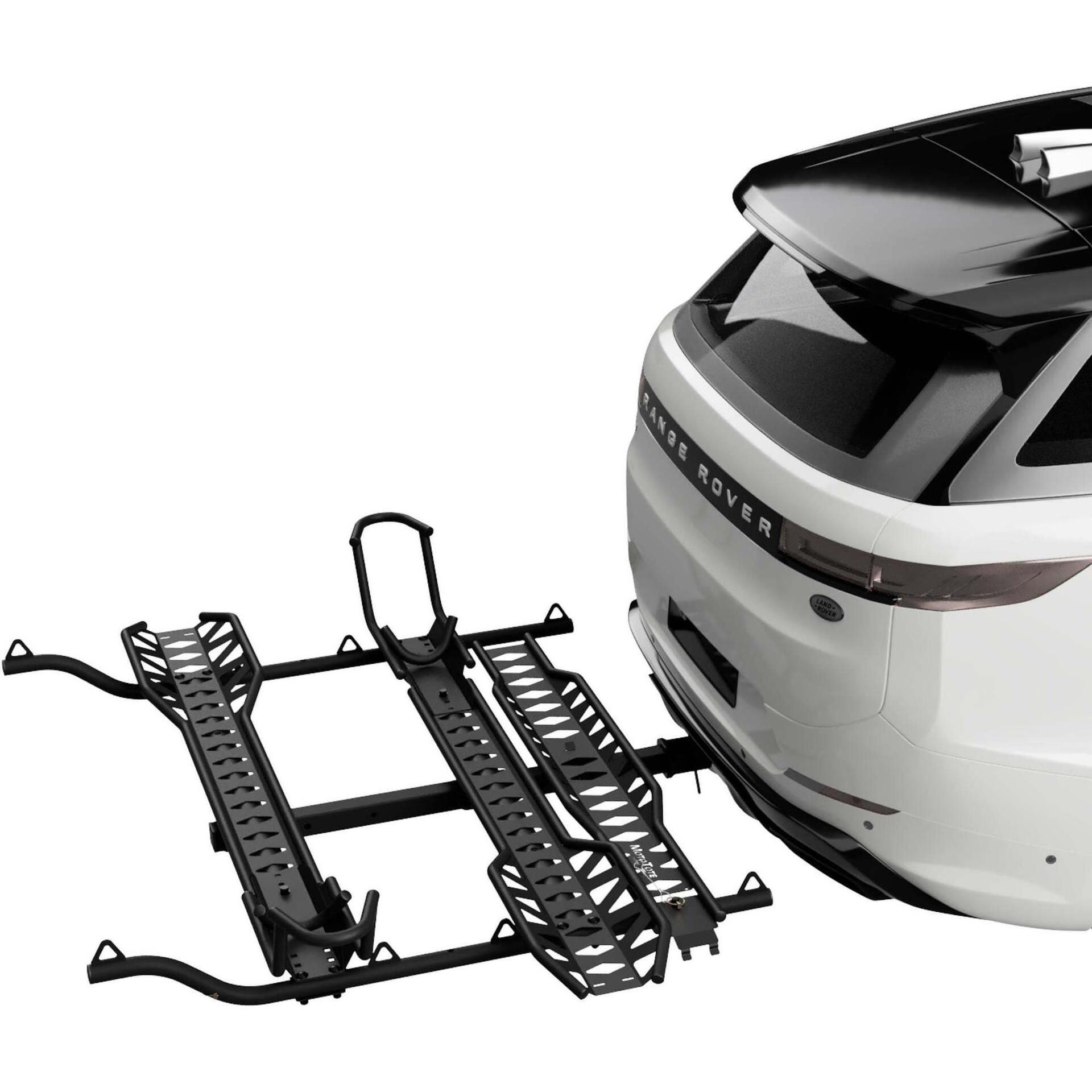

MotoTote Max+ Dual Motorcycle Carrier - MTXPD

This two-motorcycle variation of the elite sport bike, scrambler, and dual sport motorcycle carrier—comes fully equipped with all necessary parts to function as a dual and single carrier, maximizing versatility for any trip. Weighing 106 lbs and capable of hauling two motorcycles up to a combined 600 lbs, it offers outstanding structural efficiency with innovative adjustable parts: two-piece/locking front wheel chocks, advanced gripping tire tracks for wide tires, specialized dual tie-down arms, an elongated ramp with quicker loading access, and a stabilizing single-bolt connection to vehicles. Bring your riding partner; new roads await.

Specifications:

• Weight Capacity: Up to 600 lbs (272 kg)
• Outer Track: 250 lbs (113 kg) Maximum
• Tire Sizes: Up to 5.5" (140 mm) Front, 9" (229 mm) Rear
• Wheelbase: Up to 65" (165 cm)

Includes:

• One (1) HitchLift Receiver Tube XL - Innovative extended 2" receiver tube counteracts common vehicle hitch droop with a slight upward bend, ensuring that the racks are angled correctly from the back of the vehicle. Provides additional ground clearance and adjustability
• Two (2) MTX Platforms - Heavy-duty steel main supports connect to 2" receivers, haul up to 600 lbs (272 kg) (300 lbs per track spot) support track/chock adjustability, and the attachment of innovative components
• Two (2) StableStop Chocks Extra Wide - Adjustable tire mounts secure front tires up to 5.5" (139 mm), add lateral support, and hold the motorcycle upright while securing tie-downs
• Two (2) MaxHold HD Tracks - Two adjustable laser cut tracks with improved geometry and reinforcements offer unrivaled wedging and grip to secure a range of oversized rear tire sizes up to 9" (229 mm) and adjust up to a 62" (157 cm) wheelbase
• Two (2) BroadPull XL Arms - Extended length dual tie-down arms expand strap angles, add strength and maximize leverage
• One (1) QuickLoad Ramp - A robust, elongated laser-cut ramp reduces loading angle, eliminates bottoming out and stores from the same side the ramp loads for a quicker setup
• One (1) ZeroWobble+ Hitch Mount - Upgraded mount eliminates rack movement laterally in transport and requires fewer tools for installation

Installation Instructions (1.31 MB)
