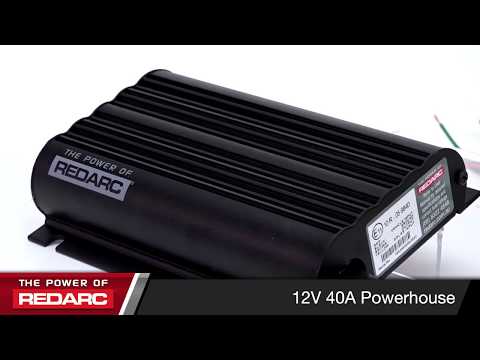

REDARC Electronics BCDC Classic DC Battery Charger - 12V

The REDARC under bonnet Battery Chargers is are DC to DC battery chargers, capable of high performance in engine bay installations, potted to survive and thrive against heat, water and dust.

Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the Classic will charge from both solar and the alternator simultaneously. And, with built-in 'Green Power Priority™' it will select solar charging first, meaning less load on the alternator.

Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.

The charger features the same patented charging profiles as it's predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries, perfect for pairing with a REDARC Lithium battery.

For most applications, the BCDC1225D is suitable for battery bank sizes of 75-200AH. For higher capacity needs of over 200AH, REDARC recommends the BCDC1240D or BCDC1250D .

Features:

• Dual input charging from both alternator and solar sources with priority given to solar power
• Compatible with standard, smart, and variable voltage alternators for versatile vehicle use
• Supports multiple battery chemistries including AGM, GEL, calcium, lead acid, and LiFePO4 types
• Patented charging profiles optimize battery life and performance across different battery technologies
• Robust design resists heat, water, dust, and vibration for reliable under-bonnet or in-vehicle installation
• SoftStart technology on higher output models manages demanding charging conditions effectively
• Suitable for a wide range of battery bank capacities from 75Ah up to over 200Ah

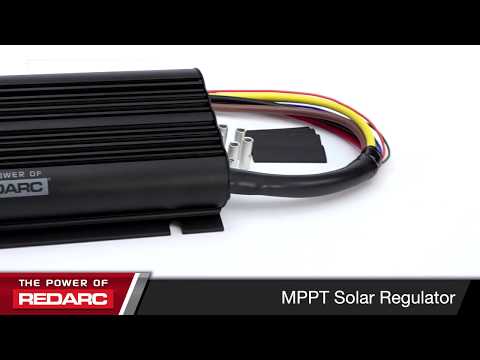

• Built-in Maximum Power Point Tracking (MPPT) solar regulator maximizes solar charging efficiency
• Green power priority reduces alternator load by prioritizing solar energy when available
• Compact and durable construction designed for extreme temperatures up to 80°C

Specifications:

• Continuous Current Rating: 25A, 40A, or 50A
• Nominal Output Power: 375W, 600W, or 750W
• Input Voltage: 9 - 32V
• Output Voltage: 12V DC
• Max Charging Voltage: 15.3V
• Input Fuse Rating: 40A or 60A (Fuse Not Included)
• Output Fuse Rating: 40A or 60A (Fuse Not Included)
• Solar Switch-On Voltage: 9V
• Dimensions (W x H x D): 4.7" x 1.5" x 6.5" / 120 mm x 37 mm x 165 mm
• Weight: 35.3 oz or 1 kg
• Operating Temperature: -20°C to 80°C

Instruction Manual (1.33 MB)
