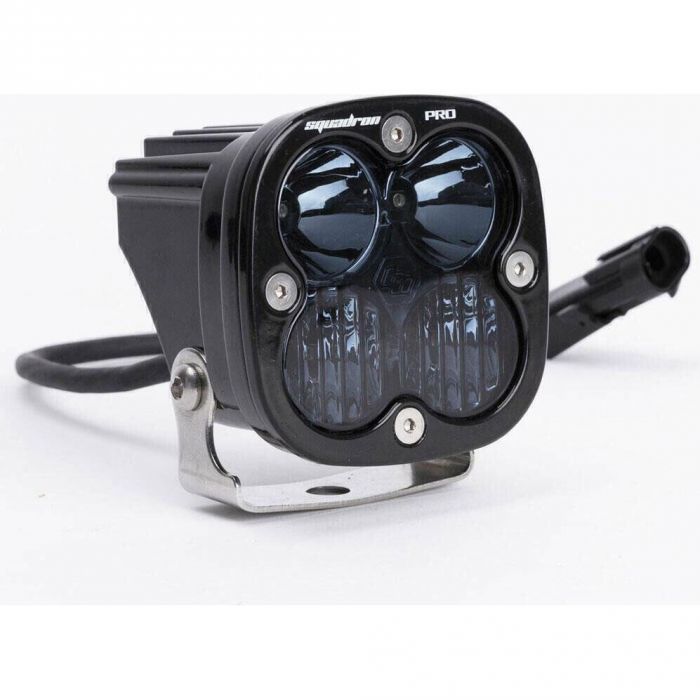

Baja Designs Squadron Pro Infrared LED Light Pod - 497093

The Squadron Pro Infrared LED Light Pod is a compact 3" x 3" lighting solution designed for covert use with night vision devices. Featuring a durable black gloss aluminum housing, this model operates at 940nm for effective stealth illumination in tactical and hunting environments.

Features:

• Utilizes advanced Osram 940nm LEDs to deliver powerful infrared light suitable for night vision applications
• Constructed with aircraft-grade aluminum housing finished with Mil-Spec hard anodize for enhanced durability
• Incorporates moisture-block technology to ensure waterproof and submersible performance up to 9'
• Includes stainless steel mounting hardware for secure and corrosion-resistant installation
• Equipped with built-in overvoltage protection to safeguard the lighting system during operation
• Designed with a hardcoated polycarbonate lens that resists scratches and environmental damage
• Meets rigorous standards including MIL-STD810G, IK10 impact resistance, and IP69K water resistance
• Offers a driving/combo beam pattern optimized for versatile illumination needs

Specifications:

• Dimensions (H x W x D): 3 1/16" x 3 1/16" x 2 3/4"
• Weight: 0.75 lbs
• Amperage Rating: 3A
• Average Rated Life: 49,930 hours
• Brightness: 4,095 lumens
• Wattage: 41.4W
• Lens Color: Infrared
• Bezel Material: Billet Machined Aluminum
• Housing Color: Black
• Lighting Modes: High (1,700 mW/sr; 3,960 mW)
• LED Quantity: 4
• Mounting Hardware: Included, Stainless Steel

Included:

• (1) x Infrared LED Light Pod
• (1) x Mounting Hardware Set

Note: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.

Installation Instructions (2.71 MB)
